首页 Steel Privacy Fence

Ornamental Steel Fence & Railing SeriesOrnamental Steel Fence & Railing SeriesOrnamental Steel Fence & Railing SeriesOrnamental Steel Fence & Railing SeriesOrnamental Steel Fence & Railing Series

Ornamental Steel Fence & Railing Series

The Ornamental Steel Fence & Railing Series from The Fence Depot combines the timeless elegance of wrought iron with the durability of modern hot-dip galvanized steel and architectural powder coating. The series includes five products: a European-scroll wrought iron style stair railing, spear-top picket fence panels, flat-top picket panels, crank-top (bent-top) security panels, and corner panels — covering residential front yards, commercial perimeters, staircases, and high-security applications across Southern California.
Series Description

The Ornamental Steel Fence & Railing Series from The Fence Depot combines the timeless elegance of wrought iron with the durability of modern hot-dip galvanized steel and architectural powder coating. The series includes five products: a European-scroll wrought iron style stair railing, spear-top picket fence panels, flat-top picket panels, crank-top (bent-top) security panels, and corner panels — covering residential front yards, commercial perimeters, staircases, and high-security applications across Southern California.

All fence and railing components are fabricated from structural steel tubing per ASTM A500 Grade B, hot-dip galvanized after fabrication per ASTM A123 (2.0 oz/ft² minimum zinc), then finished with AkzoNobel Interpon D polyester powder coating meeting AAMA 2604. This duplex galvanize-plus-powder system provides 20+ years of corrosion protection — unlike bare wrought iron that rusts within years or pre-galvanized tubing with zinc only 0.6 oz/ft².

Panels feature welded construction (not mechanical joints), 3/4" square pickets at 3-7/8" O.C. spacing (pool-code compliant), and 2" or 2.5" square posts with flat or pyramid caps. Standard heights range from 36" to 72"; panel widths 72" (6 ft) and 94" (~8 ft). The stair railing is custom-fabricated to match stair rise and run, with handrail height 34"–38" per IRC 2024 and ADA-compliant grip profiles available. All products meet ASTM F1184 and ICC-ES requirements.

Product Gallery

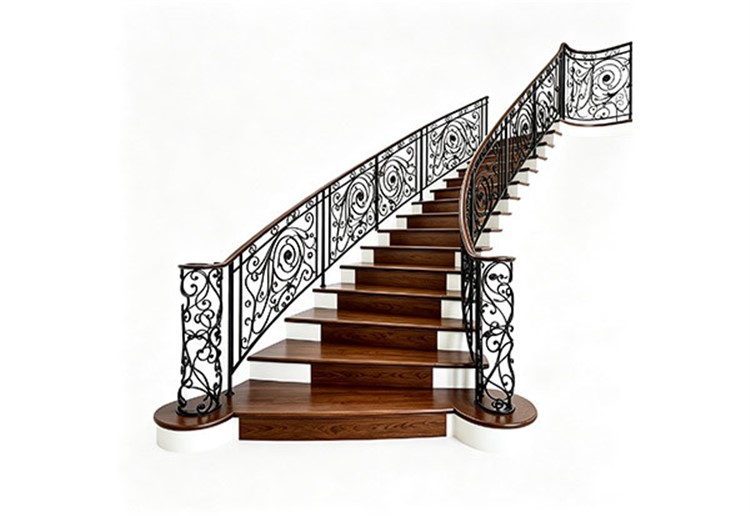

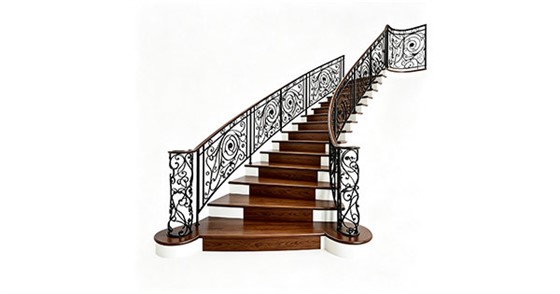

Black wrought iron style curved stair railing with European scrollwork balusters, dark walnut wood handrail, decorative newel posts, white background product photo

TFD-OS01 Wrought Iron Style Stair Railing (Scroll)

European-scroll wrought iron style stair railing for curved or straight staircases. Hand-finished scrollwork forged from 1/2" solid steel bar, 3/4" square vertical balusters, 1-1/4" square top rail with optional dark walnut or oak wood handrail cap. 2"×2" newel posts with decorative caps. Custom-fabricated to match stair rise/run and angle. Handrail height 34"–38" per IRC 2024. Ideal for luxury custom homes, Mediterranean and Spanish-style residences, and grand foyers. Hot-dip galvanized after welding + black powder coat (AAMA 2604).

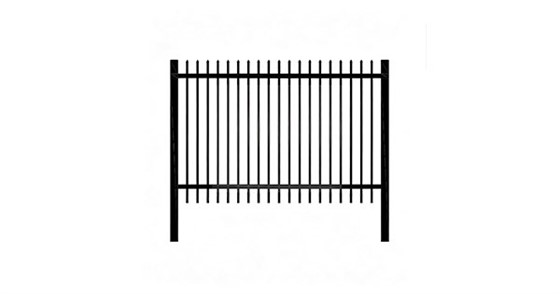

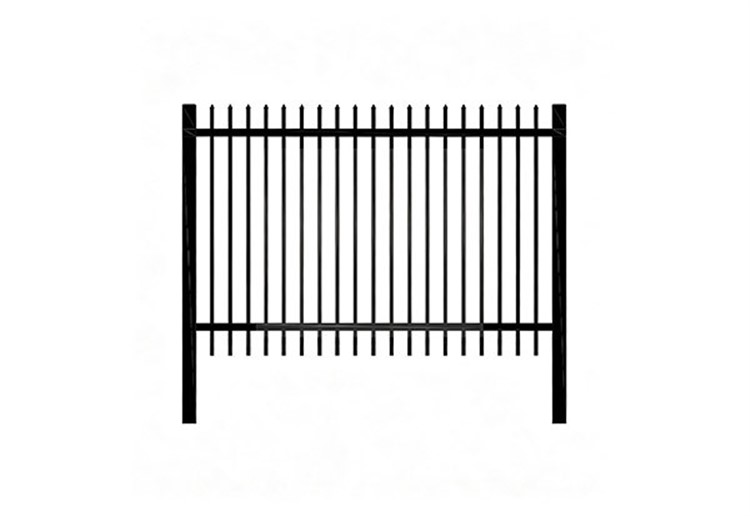

Black ornamental steel spear top picket fence panel with pressed spear points, two horizontal rails, 2 inch square posts, 3/4 inch pickets, white background

TFD-OS02 Spear Top Picket Fence Panel

Classic spear-top picket fence panel with pressed spear points on every picket. 3/4" square pickets (16 GA) at 3-7/8" O.C., two 1"×1" horizontal rails (16 GA), 2"×2" posts (16 GA). Pickets extend 2" below bottom rail for anti-dig security. Standard heights 36"–60", panel width 94" (~8 ft). The most popular residential style — traditional look suited to Colonial, Victorian, and Mediterranean homes. Welded construction, hot-dip galvanized + black powder coat. Pool-code compliant at 48"+.

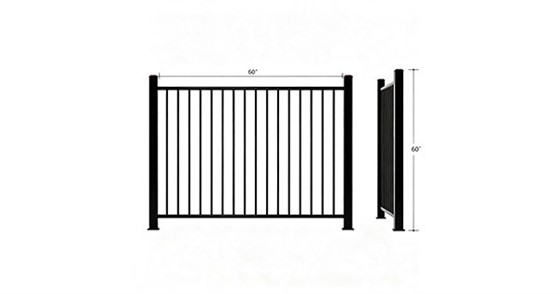

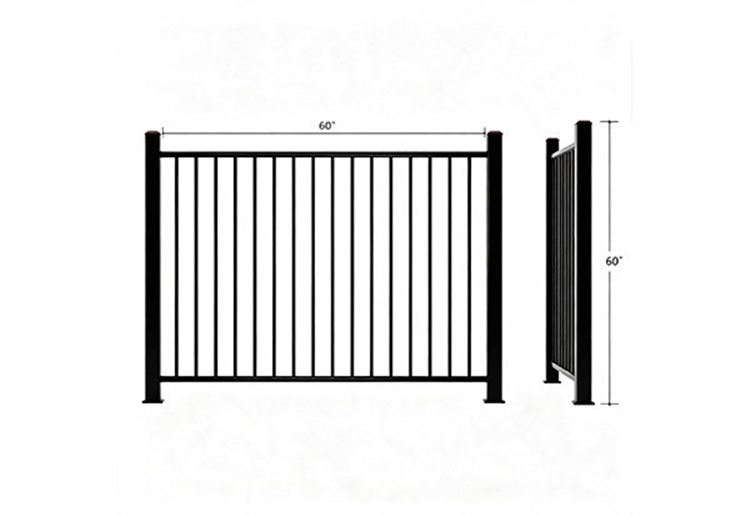

Black ornamental steel flat top picket fence panel, 60 inch wide by 60 inch high, two horizontal rails, 2 inch square posts with base plates, 3/4 inch pickets, 3D view with dimensions, white background

TFD-OS03 Flat Top Picket Fence Panel

Clean flat-top picket fence panel with flush-cut picket tops. 3/4" square pickets (16 GA) at 3-7/8" O.C., two 1"×1" rails (16 GA), 2"×2" posts (16 GA) with base-plate flanges for surface mounting on concrete or walls. Standard size 60" W × 60" H (as shown); also available 72"/94" widths and 36"–72" heights. Modern, minimalist look for contemporary homes, rooftop decks, and commercial planters. Welded construction, hot-dip galvanized + black powder coat. Base-plate mount ideal for existing hardscape.

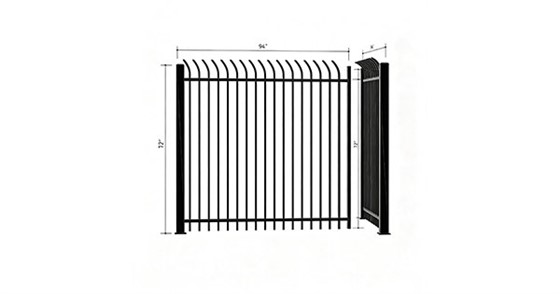

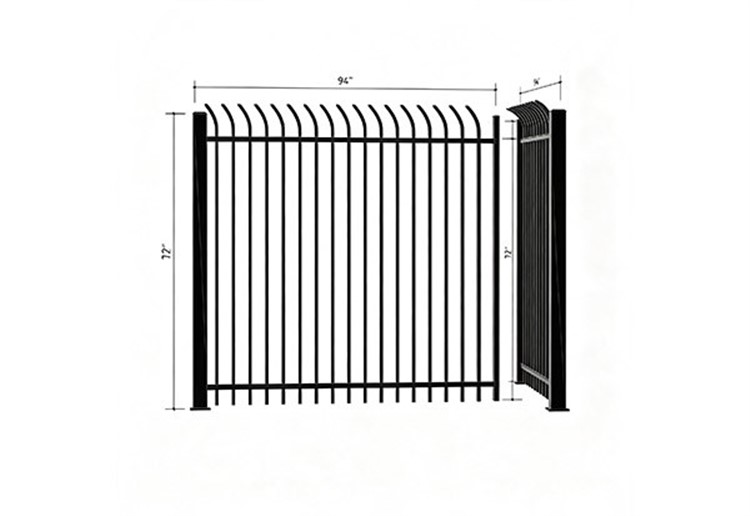

Black ornamental steel crank top bent top picket fence panel, 94 inch wide by 72 inch high, curved picket tops, three horizontal rails, 2.5 inch posts, 3D view with dimensions, white background

TFD-OS04 Crank Top (Bent Top) Security Fence Panel

Crank-top (bent-top) security fence panel with pickets curving outward 4"–6" above the top rail to deter climbing. 3/4" square pickets (16 GA) at 3-7/8" O.C., three 1-1/4"×1-1/4" rails (16 GA) for 72" height, 2.5"×2.5" posts (14 GA). Standard size 94" W × 72" H (as shown); also available 60"/84" heights. Provides anti-climb security without barbed wire — ideal for schools, churches, parks, utilities, and commercial perimeters. Welded construction, hot-dip galvanized + black powder coat. Three-rail design for rigidity at 6 ft+.

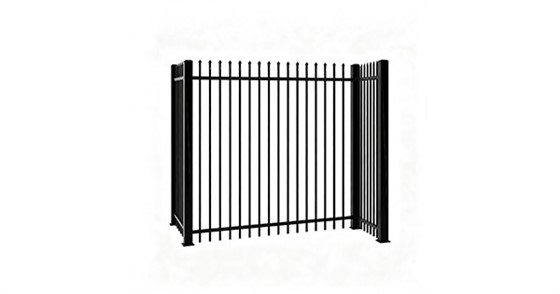

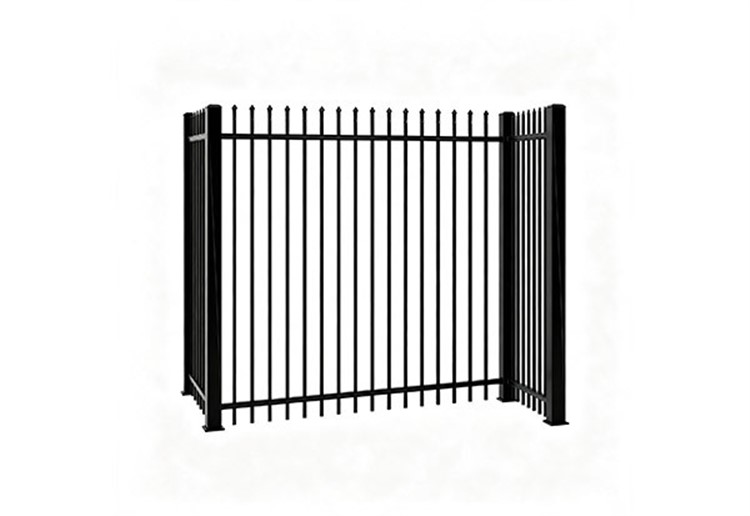

Black ornamental steel spear top picket fence corner panel with two adjoining sections at 90 degrees, 2.5 inch corner post, pressed spear points, two rails, 3D perspective, white background

TFD-OS05 Spear Top Corner Fence Panel

Pre-fabricated 90° corner panel with spear-top pickets on both adjoining sections. 3/4" square pickets (16 GA) at 3-7/8" O.C., two 1"×1" rails (16 GA), heavy 2.5"×2.5" corner post (14 GA) with flat cap. Each leg 47" (half panel) for seamless corner transitions without field mitering. Standard heights 48"–72". Eliminates the weakest point in fence runs — the corner — where field-cut panels often leave gaps or misaligned pickets. Welded construction, hot-dip galvanized + black powder coat. Also available in flat-top and crank-top styles.

Specifications
Parameter TFD-OS01
Stair Railing 		TFD-OS02
Spear Top Panel 		TFD-OS03
Flat Top Panel 		TFD-OS04
Crank Top Panel 		TFD-OS05
Corner Panel
Product Type Wrought Iron Style
Stair Railing 		Spear Top Picket
Fence Panel 		Flat Top Picket
Fence Panel 		Crank Top Security
Fence Panel 		Spear Top Corner
Fence Panel
Material Standard ASTM A500 Gr. B steel
solid bar scrollwork 		ASTM A500 Gr. B steel ASTM A500 Gr. B steel ASTM A500 Gr. B steel ASTM A500 Gr. B steel
Post Size 2"×2" newel post
(2.5" opt.) 		2"×2" sq. tube 2"×2" sq. tube 2.5"×2.5" sq. tube 2.5"×2.5" corner post
Post Wall Thickness 16 GA (0.065")
14 GA opt. 		16 GA (0.065") 16 GA (0.065") 14 GA (0.083") 14 GA (0.083")
Rail Size 1-1/4" sq. top rail
+ wood cap opt. 		1"×1" sq.
two rails 		1"×1" sq.
two rails 		1-1/4"×1-1/4" sq.
three rails 		1"×1" sq.
two rails
Rail Wall Thickness 16 GA (0.065") 16 GA (0.065") 16 GA (0.065") 16 GA (0.065") 16 GA (0.065")
Picket / Baluster 3/4" sq. balusters
+ 1/2" solid scrolls 		3/4"×3/4" sq.
pressed spear 		3/4"×3/4" sq.
flat cut 		3/4"×3/4" sq.
crank/bent top 		3/4"×3/4" sq.
pressed spear
Picket Wall Thickness 16 GA (0.065") 16 GA (0.065") 16 GA (0.065") 16 GA (0.065") 16 GA (0.065")
Picket Spacing <4" per IRC
(3-7/8" O.C.) 		3-7/8" O.C.
(pool code) 		3-7/8" O.C.
(pool code) 		3-7/8" O.C.
(pool code) 		3-7/8" O.C.
(pool code)
Standard Heights 34"–38" handrail
per IRC R311.7.8 		36" / 42" / 48" / 60" 36" / 48" / 60" 60" / 72" / 84" 48" / 60" / 72"
Panel Width Custom to stair run
(per linear ft) 		94" (~8 ft) standard
72" (6 ft) opt. 		60" standard
72" / 94" opt. 		94" (~8 ft) standard 47" + 47" legs
(90° corner)
Construction Fully welded
+ forged scrolls 		Fully welded Fully welded Fully welded Fully welded
Galvanizing ASTM A123 HDG
2.0 oz/ft² after fab. 		ASTM A123 HDG
2.0 oz/ft² after fab. 		ASTM A123 HDG
2.0 oz/ft² after fab. 		ASTM A123 HDG
2.0 oz/ft² after fab. 		ASTM A123 HDG
2.0 oz/ft² after fab.
Powder Coating AkzoNobel Interpan D
AAMA 2604 		AkzoNobel Interpan D
AAMA 2604 		AkzoNobel Interpan D
AAMA 2604 		AkzoNobel Interpan D
AAMA 2604 		AkzoNobel Interpan D
AAMA 2604
Coating Thickness 4.0–5.5 mils DFT
(duplex system) 		4.0–5.5 mils DFT
(duplex system) 		4.0–5.5 mils DFT
(duplex system) 		4.0–5.5 mils DFT
(duplex system) 		4.0–5.5 mils DFT
(duplex system)
Standard Color Black RAL 9005
(matte/satin) 		Black RAL 9005 Black RAL 9005 Black RAL 9005 Black RAL 9005
Optional Colors Bronze, White, Green
custom RAL 		Bronze, White, Green
custom RAL 		Bronze, White, Green
custom RAL 		Bronze, White, Green
custom RAL 		Bronze, White, Green
custom RAL
Post Cap Style Decorative newel cap Flat / pyramid cap Flat cap Flat / pyramid cap Flat / pyramid cap
Mounting Core-drill or
base plate 		Direct burial or
base plate 		Base plate (flange)
or direct burial 		Direct burial or
base plate 		Direct burial or
base plate
Wood Handrail Cap Walnut / oak /
mahogany optional 		N/A N/A N/A N/A
Gate Compatibility N/A Matching walk/drive
gates available 		Matching walk/drive
gates available 		Matching walk/drive
gates available 		N/A
Wind Load Rating N/A (interior) 110 mph standard
150 mph NOA opt. 		110 mph standard 110 mph standard
150 mph NOA opt. 		110 mph standard
Pool Code N/A (interior stair) BOCA/NSPI compliant
(48"+ config) 		BOCA/NSPI compliant
(48"+ config) 		BOCA/NSPI compliant
(48"+ config) 		BOCA/NSPI compliant
(48"+ config)
IRC Compliance IRC R311.7.8 / R312
ADA grip profile 		IRC 2024 guards
(R312) 		IRC 2024 guards
(R312) 		IRC 2024 guards
(R312) 		IRC 2024 guards
(R312)
Warranty — Structure 20 years limited 20 years limited 20 years limited 20 years limited 20 years limited
Warranty — Finish 20 yr film / 10 yr color
(AAMA 2604) 		20 yr film / 10 yr color
(AAMA 2604) 		20 yr film / 10 yr color
(AAMA 2604) 		20 yr film / 10 yr color
(AAMA 2604) 		20 yr film / 10 yr color
(AAMA 2604)
Standards ASTM A500, A123, A153
AAMA 2604, IRC 2024
ASTM E985, ADA 		ASTM F1184, A500
A123, A153, AAMA 2604
BOCA / IRC 2024 		ASTM F1184, A500
A123, A153, AAMA 2604
BOCA / IRC 2024 		ASTM F1184, A500
A123, A153, AAMA 2604
BOCA / IRC 2024 		ASTM F1184, A500
A123, A153, AAMA 2604
BOCA / IRC 2024
Lead Time (Stock) N/A (custom fab) 5–7 business days 5–7 business days 7–10 business days 7–10 business days
Lead Time (Custom) 15–20 working days 10–15 working days 10–15 working days 15–20 working days 15–20 working days
