The Vinyl (PVC) Fence Series from The Fence Depot offers five classic American fence styles in maintenance-free rigid vinyl: an arched picket walk gate, straight-top picket panels, privacy panels with lattice top, scalloped picket panels, and full-lattice garden screens. Vinyl is the fastest-growing fence category in Southern California — homeowners get the white picket look without painting, staining, or termite treatment, and HOA communities love the uniform appearance that never fades or chalks.
All profiles are extruded from 100% virgin rigid PVC compound per ASTM D1784 (cell class 12454-B), formulated with 10 parts per hundred resin (phr) titanium dioxide for UV resistance and acrylic impact modifiers — not calcium carbonate filler that makes cheap vinyl brittle. Wall thickness ranges from 0.135" (residential picket) to 0.150"+ (privacy/commercial). Posts are 4"×4" or 5"×5" routed square with aluminum or steel internal reinforcement inserts available for high-wind zones. All components meet ASTM F964, the standard specification for rigid poly(vinyl chloride) (PVC) exterior profile fencing.
Panels assemble with routed posts and interlocking rails — no visible fasteners on picket styles. Privacy panels use tongue-and-groove boards that expand and contract with temperature without gapping. Standard heights 36"–96"; panel widths 72" (6 ft) and 96" (8 ft). Colors: White, Tan, Khaki, Adobe Red, and Weathered Wood. Lifetime limited warranty (transferable) on all residential vinyl products.
-
-

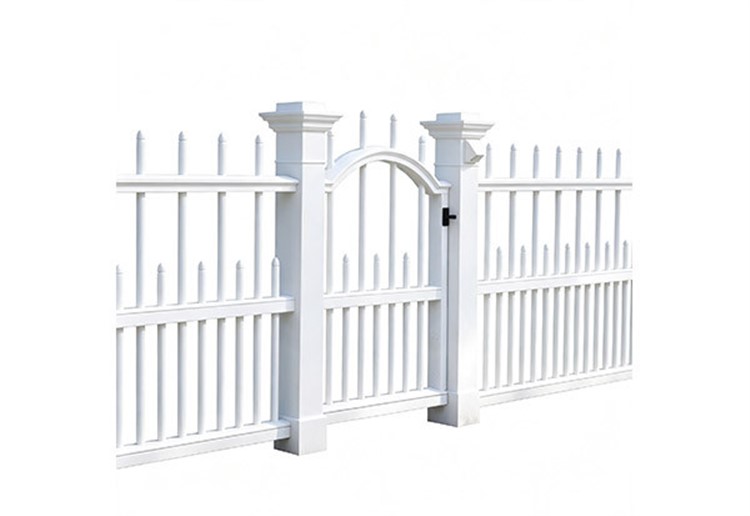

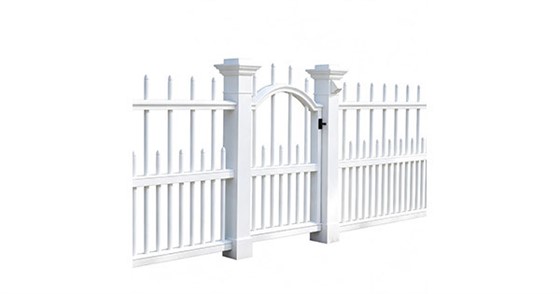

TFD-VP01 Arched Picket Walk Gate
Classic American arched picket walk gate in white vinyl. 7/8"×3" pointed pickets (0.135" wall), 2"×3.5" top and bottom rails, 4"×4" posts with decorative New England caps. Arched top rail heat-formed for a smooth curve. Internal steel C-channel reinforcement prevents sag. Stainless steel black hinges and thumb latch included. Standard width 42" (36"–48" available); height 42" at posts, 48" at arch peak. Matches TFD-VP02 and TFD-VP04 picket panels. Pool-code latch option available.
-
-

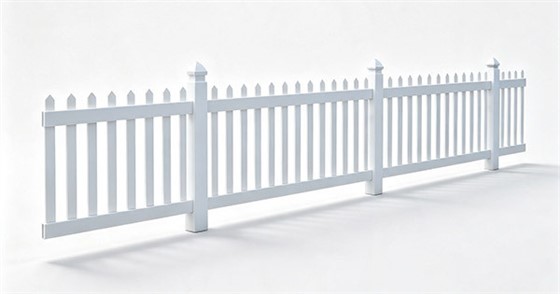

TFD-VP02 Straight Picket Fence Panel
Straight-top picket fence panel — the iconic white picket fence. 7/8"×3" pointed pickets (0.135" wall) at 3" O.C., two 2"×3.5" rails (0.135" wall), 4"×4" routed posts with pyramid caps. Standard heights 36", 42", 48"; panel width 96" (8 ft) or 72" (6 ft). Rails lock into routed posts — no visible fasteners. Ideal for front yards, cottage gardens, and HOA communities. Available in White, Tan, and Khaki. Matching walk and drive gates available.
-
-

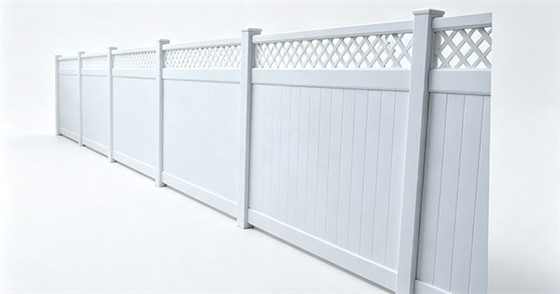

TFD-VP03 Privacy Fence with Lattice Top
Full-privacy fence panel with decorative diamond lattice top band. 3/4"×5.5" T&G privacy boards (0.150" wall) on bottom 48"–60"; 12" lattice top (1/2"×1-1/2" slats, 1" diamonds); 2"×6" top and bottom U-channel rails; 5"×5" posts (0.150" wall) with flat caps. Standard heights 60", 72", 84"; panel width 96" (8 ft). The lattice top adds airflow and visual interest while maintaining full privacy below. Most popular backyard style in Southern California HOAs.
-
-

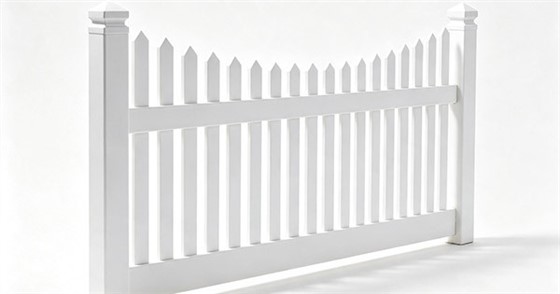

TFD-VP04 Scalloped Picket Fence Panel
Scalloped (arched) picket fence panel with pickets graduated in length to create a gentle arch curve. 7/8"×3" pointed pickets (0.135" wall), two 2"×3.5" rails, 4"×4" posts with decorative caps. Standard height 42" at posts rising to 52" at center; panel width 96" (8 ft). The scalloped profile adds curb appeal and a softer look than straight picket — popular for cottage, Cape Cod, and farmhouse styles. Pairs with TFD-VP01 arched gate for a coordinated front entry.
-
-

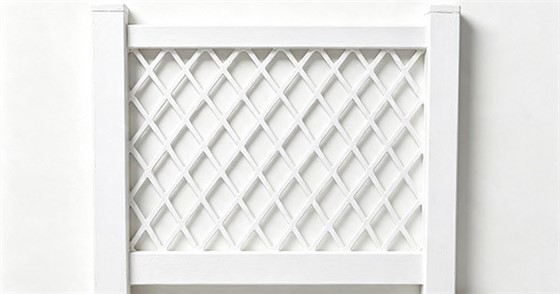

TFD-VL05 Full Lattice Fence Panel
Full-height diamond lattice panel for garden screens, AC unit enclosures, patio dividers, and climbing plant supports. 1/2"×1-1/2" vinyl slats (0.120" wall) in 1" diamond openings, framed in 1-1/2"×1-1/2" vinyl border; 4"×4" posts with flat or pyramid caps. Standard heights 36", 48"; panel width 96" (8 ft). Open lattice provides 60% airflow while screening unsightly views. Vinyl lattice will not rot, splinter, or need staining like wood lattice — ideal for jasmine, bougainvillea, and climbing roses.
| Parameter |
TFD-VP01 Arched Gate |
TFD-VP02 Straight Picket |
TFD-VP03 Privacy Lattice |
TFD-VP04 Scalloped Picket |
TFD-VL05 Full Lattice |
| Product Type |
Arched Picket Walk Gate |
Straight Picket Fence Panel |
Privacy Fence with Lattice Top |
Scalloped Picket Fence Panel |
Full Lattice Fence Panel |
| Material Standard |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
| Virgin PVC Content |
100% virgin no regrind |
100% virgin no regrind |
100% virgin no regrind |
100% virgin no regrind |
100% virgin no regrind |
| TiO2 UV Stabilizer | 10 phr minimum | 10 phr minimum | 10 phr minimum | 10 phr minimum | 10 phr minimum |
| Impact Modifier | Acrylic (not CPE) | Acrylic (not CPE) | Acrylic (not CPE) | Acrylic (not CPE) | Acrylic (not CPE) |
| Post Size |
4"×4" sq. routed (5" opt.) |
4"×4" sq. routed | 5"×5" sq. routed | 4"×4" sq. routed | 4"×4" sq. routed |
| Post Wall Thickness | 0.150" | 0.150" | 0.150"–0.180" | 0.150" | 0.150" |
| Rail Size |
2"×3.5" rect. 2 rails |
2"×3.5" rect. 2 rails |
2"×6" U-channel 2 rails |
2"×3.5" rect. 2 rails |
1-1/2"×1-1/2" lattice frame |
| Rail Wall Thickness | 0.135" | 0.135" | 0.150" | 0.135" | 0.120" |
| Picket / Board |
7/8"×3" pointed pickets |
7/8"×3" pointed pickets |
3/4"×5.5" T&G privacy boards |
7/8"×3" pointed pickets (graduated) |
1/2"×1-1/2" lattice slats |
| Picket Wall Thickness | 0.135" | 0.135" | 0.150" | 0.135" | 0.120" |
| Picket Spacing | 3" O.C. | 3" O.C. |
T&G full close (no gaps) |
3" O.C. |
1" diamond openings |
| Lattice Detail | N/A | N/A |
12" top band 1" diamonds |
N/A |
Full height 1" diamonds |
| Standard Heights |
42" at posts 48" at arch peak |
36" / 42" / 48" | 60" / 72" / 84" |
42" at posts 52" at center |
36" / 48" |
| Panel / Gate Width |
36"–48" gate (42" standard) |
72" / 96" | 72" / 96" | 72" / 96" | 72" / 96" |
| Assembly |
Routed posts locking rails |
Routed posts locking rails |
Routed posts T&G boards |
Routed posts locking rails |
Routed posts framed lattice |
| Gate Reinforcement |
Internal steel C-channel |
N/A | N/A (gate opt.) | N/A (gate opt.) | N/A |
| Post Cap Style | New England cap | Pyramid cap | Flat cap | Decorative cap | Flat / pyramid cap |
| Internal Insert |
Steel C-channel (gate) |
Aluminum insert (opt. high wind) |
Aluminum/steel insert (opt.) |
Aluminum insert (opt.) |
N/A |
| Standard Colors | White, Tan, Khaki | White, Tan, Khaki |
White, Tan, Khaki Adobe Red, Wthrd Wood |
White, Tan, Khaki | White, Tan, Khaki |
| Hardware Included |
SS hinges + latch (black or white) |
SS screws (color-matched) |
SS screws (color-matched) |
SS screws (color-matched) |
SS screws (color-matched) |
| Wind Load Rating | N/A (gate) |
110 mph standard 150 mph NOA opt. |
110 mph standard 150 mph NOA opt. |
110 mph standard | 110 mph standard |
| Pool Code |
Self-closing latch (opt.) |
BOCA/NSPI (48"+ config) |
BOCA/NSPI (48"+ config) |
BOCA/NSPI (48"+ config) |
Not rated (open lattice) |
| Temperature Range |
-20°F to 140°F service |
-20°F to 140°F service |
-20°F to 140°F service |
-20°F to 140°F service |
-20°F to 140°F service |
| Thermal Expansion |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
| Flammability |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
| Warranty |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
| Standards |
ASTM F964, D1784 D638, D256, G154 ICC-ES, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES, NOA, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES |
| Lead Time (Stock) | 3–5 business days | 3–5 business days | 3–5 business days | 5–7 business days | 3–5 business days |
| Lead Time (Custom) | 10–15 working days | 7–10 working days | 7–10 working days | 10–15 working days | 7–10 working days |
