The Ornamental Steel Fence & Railing Series from The Fence Depot combines the timeless elegance of wrought iron with the durability of modern hot-dip galvanized steel and architectural powder coating. The series includes five products: a European-scroll wrought iron style stair railing, spear-top picket fence panels, flat-top picket panels, crank-top (bent-top) security panels, and corner panels — covering residential front yards, commercial perimeters, staircases, and high-security applications across Southern California.
All fence and railing components are fabricated from structural steel tubing per ASTM A500 Grade B, hot-dip galvanized after fabrication per ASTM A123 (2.0 oz/ft² minimum zinc), then finished with AkzoNobel Interpon D polyester powder coating meeting AAMA 2604. This duplex galvanize-plus-powder system provides 20+ years of corrosion protection — unlike bare wrought iron that rusts within years or pre-galvanized tubing with zinc only 0.6 oz/ft².
Panels feature welded construction (not mechanical joints), 3/4" square pickets at 3-7/8" O.C. spacing (pool-code compliant), and 2" or 2.5" square posts with flat or pyramid caps. Standard heights range from 36" to 72"; panel widths 72" (6 ft) and 94" (~8 ft). The stair railing is custom-fabricated to match stair rise and run, with handrail height 34"–38" per IRC 2024 and ADA-compliant grip profiles available. All products meet ASTM F1184 and ICC-ES requirements.

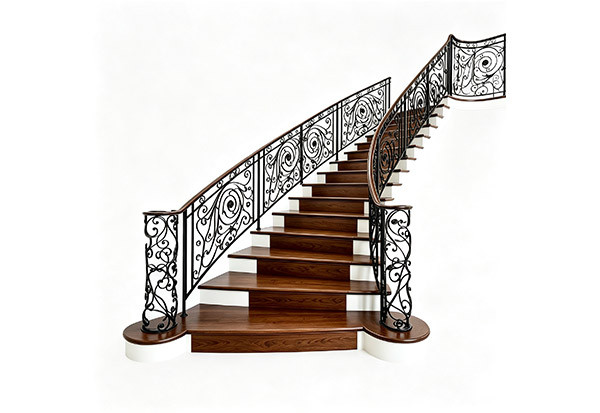

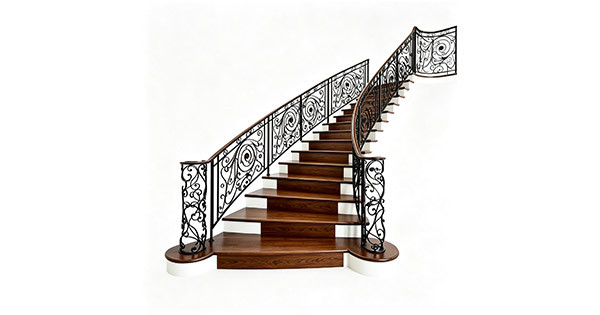

European-scroll wrought iron style stair railing for curved or straight staircases. Hand-finished scrollwork forged from 1/2" solid steel bar, 3/4" square vertical balusters, 1-1/4" square top rail with optional dark walnut or oak wood handrail cap. 2"×2" newel posts with decorative caps. Custom-fabricated to match stair rise/run and angle. Handrail height 34"–38" per IRC 2024. Ideal for luxury custom homes, Mediterranean and Spanish-style residences, and grand foyers. Hot-dip galvanized after welding + black powder coat (AAMA 2604).

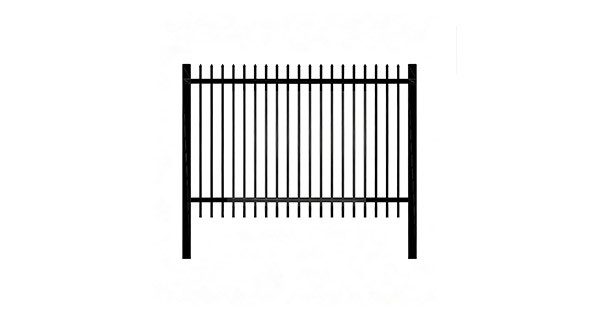

Classic spear-top picket fence panel with pressed spear points on every picket. 3/4" square pickets (16 GA) at 3-7/8" O.C., two 1"×1" horizontal rails (16 GA), 2"×2" posts (16 GA). Pickets extend 2" below bottom rail for anti-dig security. Standard heights 36"–60", panel width 94" (~8 ft). The most popular residential style — traditional look suited to Colonial, Victorian, and Mediterranean homes. Welded construction, hot-dip galvanized + black powder coat. Pool-code compliant at 48"+.

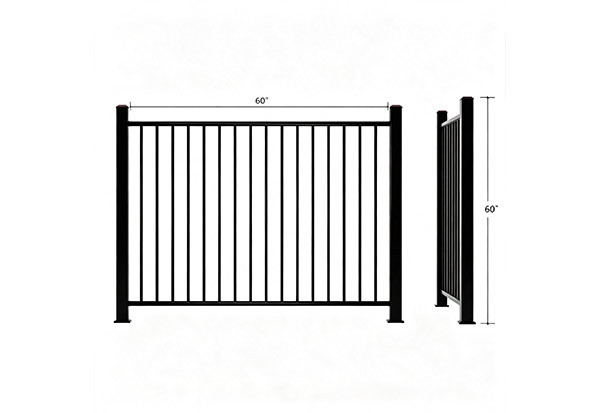

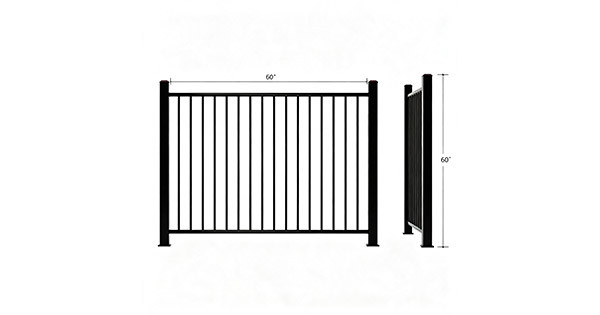

Clean flat-top picket fence panel with flush-cut picket tops. 3/4" square pickets (16 GA) at 3-7/8" O.C., two 1"×1" rails (16 GA), 2"×2" posts (16 GA) with base-plate flanges for surface mounting on concrete or walls. Standard size 60" W × 60" H (as shown); also available 72"/94" widths and 36"–72" heights. Modern, minimalist look for contemporary homes, rooftop decks, and commercial planters. Welded construction, hot-dip galvanized + black powder coat. Base-plate mount ideal for existing hardscape.

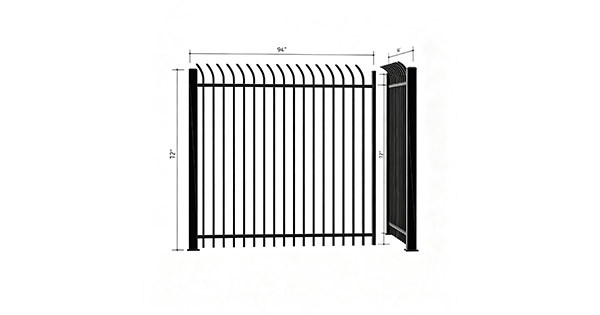

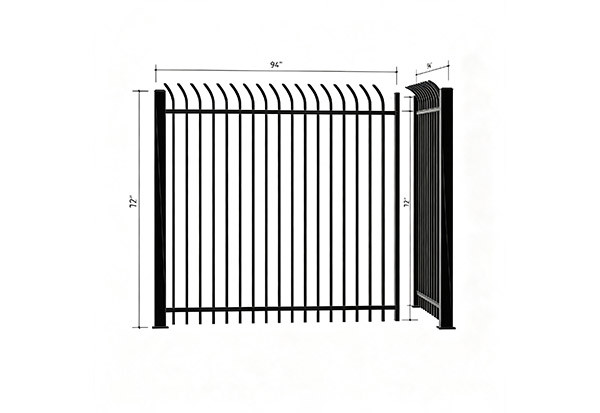

Crank-top (bent-top) security fence panel with pickets curving outward 4"–6" above the top rail to deter climbing. 3/4" square pickets (16 GA) at 3-7/8" O.C., three 1-1/4"×1-1/4" rails (16 GA) for 72" height, 2.5"×2.5" posts (14 GA). Standard size 94" W × 72" H (as shown); also available 60"/84" heights. Provides anti-climb security without barbed wire — ideal for schools, churches, parks, utilities, and commercial perimeters. Welded construction, hot-dip galvanized + black powder coat. Three-rail design for rigidity at 6 ft+.

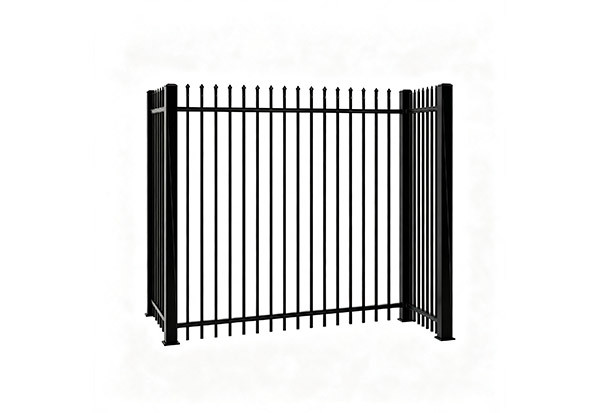

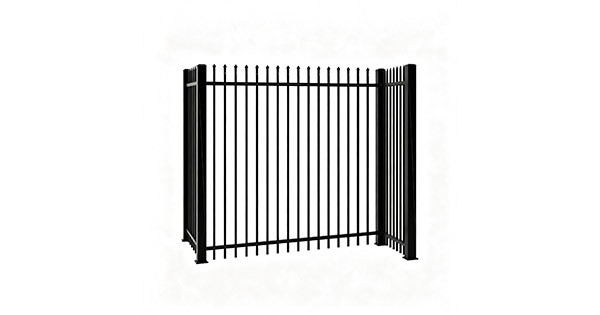

Pre-fabricated 90° corner panel with spear-top pickets on both adjoining sections. 3/4" square pickets (16 GA) at 3-7/8" O.C., two 1"×1" rails (16 GA), heavy 2.5"×2.5" corner post (14 GA) with flat cap. Each leg 47" (half panel) for seamless corner transitions without field mitering. Standard heights 48"–72". Eliminates the weakest point in fence runs — the corner — where field-cut panels often leave gaps or misaligned pickets. Welded construction, hot-dip galvanized + black powder coat. Also available in flat-top and crank-top styles.
| Parameter |
TFD-OS01 Stair Railing |
TFD-OS02 Spear Top Panel |
TFD-OS03 Flat Top Panel |
TFD-OS04 Crank Top Panel |
TFD-OS05 Corner Panel |
| Product Type |
Wrought Iron Style Stair Railing |
Spear Top Picket Fence Panel |
Flat Top Picket Fence Panel |
Crank Top Security Fence Panel |
Spear Top Corner Fence Panel |
| Material Standard |
ASTM A500 Gr. B steel solid bar scrollwork |
ASTM A500 Gr. B steel | ASTM A500 Gr. B steel | ASTM A500 Gr. B steel | ASTM A500 Gr. B steel |
| Post Size |
2"×2" newel post (2.5" opt.) |
2"×2" sq. tube | 2"×2" sq. tube | 2.5"×2.5" sq. tube | 2.5"×2.5" corner post |
| Post Wall Thickness |
16 GA (0.065") 14 GA opt. |
16 GA (0.065") | 16 GA (0.065") | 14 GA (0.083") | 14 GA (0.083") |
| Rail Size |
1-1/4" sq. top rail + wood cap opt. |
1"×1" sq. two rails |
1"×1" sq. two rails |
1-1/4"×1-1/4" sq. three rails |
1"×1" sq. two rails |
| Rail Wall Thickness | 16 GA (0.065") | 16 GA (0.065") | 16 GA (0.065") | 16 GA (0.065") | 16 GA (0.065") |
| Picket / Baluster |
3/4" sq. balusters + 1/2" solid scrolls |
3/4"×3/4" sq. pressed spear |
3/4"×3/4" sq. flat cut |
3/4"×3/4" sq. crank/bent top |
3/4"×3/4" sq. pressed spear |
| Picket Wall Thickness | 16 GA (0.065") | 16 GA (0.065") | 16 GA (0.065") | 16 GA (0.065") | 16 GA (0.065") |
| Picket Spacing |
<4" per IRC (3-7/8" O.C.) |
3-7/8" O.C. (pool code) |
3-7/8" O.C. (pool code) |
3-7/8" O.C. (pool code) |
3-7/8" O.C. (pool code) |
| Standard Heights |
34"–38" handrail per IRC R311.7.8 |
36" / 42" / 48" / 60" | 36" / 48" / 60" | 60" / 72" / 84" | 48" / 60" / 72" |
| Panel Width |
Custom to stair run (per linear ft) |
94" (~8 ft) standard 72" (6 ft) opt. |
60" standard 72" / 94" opt. |
94" (~8 ft) standard |
47" + 47" legs (90° corner) |
| Construction |
Fully welded + forged scrolls |
Fully welded | Fully welded | Fully welded | Fully welded |
| Galvanizing |
ASTM A123 HDG 2.0 oz/ft² after fab. |
ASTM A123 HDG 2.0 oz/ft² after fab. |
ASTM A123 HDG 2.0 oz/ft² after fab. |
ASTM A123 HDG 2.0 oz/ft² after fab. |
ASTM A123 HDG 2.0 oz/ft² after fab. |
| Powder Coating |
AkzoNobel Interpan D AAMA 2604 |
AkzoNobel Interpan D AAMA 2604 |
AkzoNobel Interpan D AAMA 2604 |
AkzoNobel Interpan D AAMA 2604 |
AkzoNobel Interpan D AAMA 2604 |
| Coating Thickness |
4.0–5.5 mils DFT (duplex system) |
4.0–5.5 mils DFT (duplex system) |
4.0–5.5 mils DFT (duplex system) |
4.0–5.5 mils DFT (duplex system) |
4.0–5.5 mils DFT (duplex system) |
| Standard Color |
Black RAL 9005 (matte/satin) |
Black RAL 9005 | Black RAL 9005 | Black RAL 9005 | Black RAL 9005 |
| Optional Colors |
Bronze, White, Green custom RAL |
Bronze, White, Green custom RAL |
Bronze, White, Green custom RAL |
Bronze, White, Green custom RAL |
Bronze, White, Green custom RAL |
| Post Cap Style | Decorative newel cap | Flat / pyramid cap | Flat cap | Flat / pyramid cap | Flat / pyramid cap |
| Mounting |
Core-drill or base plate |
Direct burial or base plate |
Base plate (flange) or direct burial |
Direct burial or base plate |
Direct burial or base plate |
| Wood Handrail Cap |
Walnut / oak / mahogany optional |
N/A | N/A | N/A | N/A |
| Gate Compatibility | N/A |
Matching walk/drive gates available |
Matching walk/drive gates available |
Matching walk/drive gates available |
N/A |
| Wind Load Rating | N/A (interior) |
110 mph standard 150 mph NOA opt. |
110 mph standard |
110 mph standard 150 mph NOA opt. |
110 mph standard |
| Pool Code | N/A (interior stair) |
BOCA/NSPI compliant (48"+ config) |
BOCA/NSPI compliant (48"+ config) |
BOCA/NSPI compliant (48"+ config) |
BOCA/NSPI compliant (48"+ config) |
| IRC Compliance |
IRC R311.7.8 / R312 ADA grip profile |
IRC 2024 guards (R312) |
IRC 2024 guards (R312) |
IRC 2024 guards (R312) |
IRC 2024 guards (R312) |
| Warranty — Structure | 20 years limited | 20 years limited | 20 years limited | 20 years limited | 20 years limited |
| Warranty — Finish |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
| Standards |
ASTM A500, A123, A153 AAMA 2604, IRC 2024 ASTM E985, ADA |
ASTM F1184, A500 A123, A153, AAMA 2604 BOCA / IRC 2024 |
ASTM F1184, A500 A123, A153, AAMA 2604 BOCA / IRC 2024 |
ASTM F1184, A500 A123, A153, AAMA 2604 BOCA / IRC 2024 |
ASTM F1184, A500 A123, A153, AAMA 2604 BOCA / IRC 2024 |
| Lead Time (Stock) | N/A (custom fab) | 5–7 business days | 5–7 business days | 7–10 business days | 7–10 business days |
| Lead Time (Custom) | 15–20 working days | 10–15 working days | 10–15 working days | 15–20 working days | 15–20 working days |
