The Premium Aluminum Railing & Fence Series from The Fence Depot delivers a complete line of architectural-grade aluminum fencing and railing solutions for residential, commercial, and landscape applications across Southern California. The series comprises four distinct profiles: the classic vertical blade fence (open-picket style), the semi-privacy slat gate with decorative post caps, the full-height louvered privacy fence, and the signature artistic parametric screen with undulating wave/mountain silhouette — covering everything from pool code enclosures and side-yard gates to statement landscape feature walls.
All sections are manufactured from 6063-T5 aluminum alloy extrusions per ASTM B221, chosen for superior dimensional accuracy, smooth surface finish, and excellent corrosion resistance — never rust, never needs painting. Every joint is precision-mitered and mechanically fastened with stainless steel screws or TIG-welded per specification. The 7-stage pre-treatment and AkzoNobel Interpon D polyester powder coating meets AAMA 2604 high-performance requirements, ensuring 20+ years of film integrity and color retention under intense Southwestern UV.
Panels are engineered for fast contractor installation: pre-routed rails, pre-punched posts, and rackable panel design that follows ground slope up to 8 inches over 6 feet. Pool-code configurations meet BOCA/NSPI guidelines (48" minimum height, no climbable horizontal members, self-closing self-latching gate). All products comply with ASTM F1184 (Standard for Ornamental Aluminum Fences) and IRC 2024, with Miami-Dade NOA available for high-wind coastal zones.

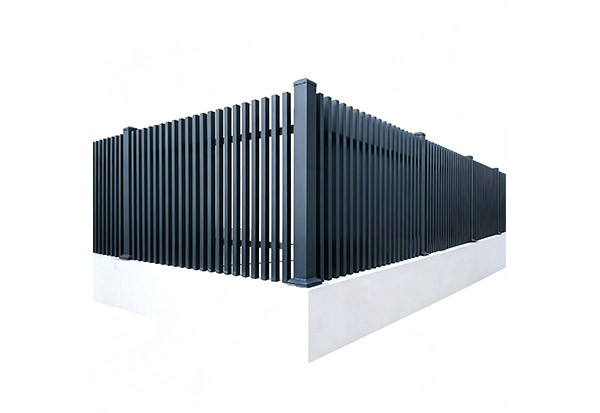

Classic vertical blade fence with 3/4"×2-3/4" rectangular aluminum blades spaced 3/4" apart for airflow and partial visibility. Features 2.5"×2.5" square posts (12 GA) with flat caps and two 1.5"×1.5" horizontal rails (14 GA). Clean, modern lines suit contemporary and transitional homes. Ideal for front yards, property line demarcation, and decorative boundary fencing. Rackable up to 8" over 6 ft to follow ground slope.

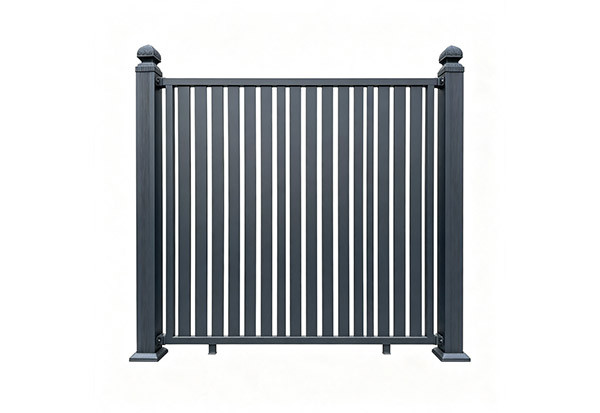

Semi-privacy walk gate with closely spaced 1"×1" square aluminum slats (14 GA) providing 70% visual screening while allowing airflow. Ornate cast-aluminum post caps add a traditional accent. Full welded 2"×1.5" frame (12 GA) with stainless ball-bearing hinges, magnetic self-closing latch, and cane drop bolts. Available in single (36–48") and double (6–8 ft) configurations. Perfect for side yards, pool entries, and courtyards.
Full-privacy louvered fence with 5/8"×2-1/2" angled aluminum louvers (16 GA) that block 100% of direct sightlines while allowing passive airflow — reducing wind load and heat buildup vs. solid walls. Designed for continuous long-run installation on concrete curbs or low walls with 2.5"×2.5" intermediate posts (12 GA) every 8 ft. Ideal for AC equipment screening, trash enclosure, pool equipment, and high-privacy residential perimeters.

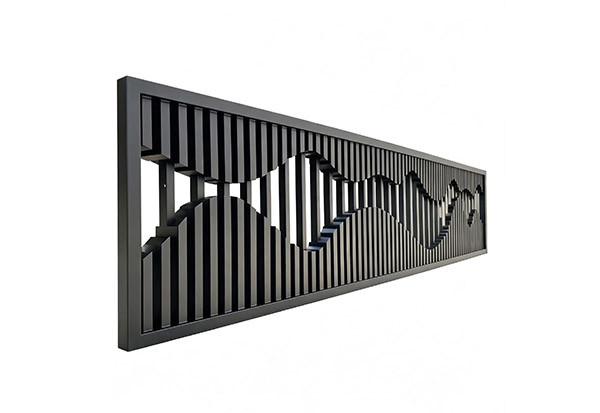

Signature CNC-fabricated parametric art screen featuring 3/4"×1-1/2" vertical blades (14 GA) of varying height that create a flowing wave/mountain ridge silhouette through the panel. Encased in a heavy 1.5"×3" architectural frame (0.125" / 1/8" wall, ~8 GA). Functions as a standalone landscape feature wall, courtyard screen, or building facade element. LED backlighting optional. Custom patterns (logos, geometric, nature) available by commission.
| Parameter |
TFD-AB01 Classic Blade |
TFD-SG02 Semi-Privacy Gate |
TFD-AL03 Louver Privacy |
TFD-AP04 Art Parametric |
| Product Type | Vertical Blade Fence Panel | Semi-Privacy Walk Gate | Louvered Privacy Fence | Parametric Art Screen |
| Material Standard |
6063-T5 Aluminum per ASTM B221 |
6063-T5 Aluminum per ASTM B221 |
6063-T5 Aluminum per ASTM B221 |
6063-T5 Aluminum per ASTM B221 |
| Post Size | 2.5"×2.5" sq. tube | 3"×3" sq. tube | 2.5"×2.5" sq. tube | 1.5"×3" rect. frame |
| Post Wall Thickness | 0.080" (12 GA) | 0.100" (10 GA) | 0.080" (12 GA) | 0.125" (1/8", ~8 GA) |
| Rail Size | 1.5"×1.5" sq. | 2"×1.5" rect. frame | 2"×1.5" rect. | Integral frame |
| Rail Wall Thickness | 0.060" (14 GA) | 0.080" (12 GA) | 0.060" (14 GA) | 0.125" (1/8", ~8 GA) |
| Picket / Blade Size |
3/4"×2-3/4" rect. blades |
1"×1" sq. slats |
5/8"×2-1/2" rect. louver |
3/4"×1-1/2" rect. blades |
| Picket Wall Thickness | 0.050" (16 GA) | 0.060" (14 GA) | 0.050" (16 GA) | 0.060" (14 GA) |
| Spacing / Gap | 3/4" gap between blades | 3/8" gap between slats | 0" sight gap (angled) | Variable (art pattern) |
| Standard Heights |
48" / 60" / 72" (4 ft / 5 ft / 6 ft) |
60" / 72" (5 ft / 6 ft) |
72" / 96" (6 ft / 8 ft) |
48" / 72" (4 ft / 6 ft) |
| Custom Heights | Up to 96" (8 ft) | Up to 96" (8 ft) | Up to 120" (10 ft) | Up to 96" (8 ft) |
| Panel Width |
96" (8 ft) standard 72" (6 ft) option |
Single: 36"–48" Double: 72"–96" |
96" (8 ft) standard |
48" / 72" / 96" custom up to 120" |
| Rackability |
Up to 8" over 72" (follows slope) |
N/A (gate) | Up to 4" over 72" | N/A (rigid panel) |
| Coating Standard |
AkzoNobel Interpon D AAMA 2604 |
AkzoNobel Interpon D AAMA 2604 |
AkzoNobel Interpon D AAMA 2604 |
AkzoNobel Interpon D AAMA 2604 |
| Coating Thickness |
4.0–5.5 mils DFT (100–140 μm) |
4.0–5.5 mils DFT (100–140 μm) |
4.0–5.5 mils DFT (100–140 μm) |
4.0–5.5 mils DFT (100–140 μm) |
| Standard Colors |
Gray RAL 7001 Black RAL 9005 |
Dark Gray RAL 7016 Black RAL 9005 |
Black RAL 9005 Dark Gray RAL 7016 |
Matte Black RAL 9005 Bronze RAL 8077 |
| Optional Colors |
White, Bronze, Dark Gray, Green |
White, Bronze, Gray, Green |
White, Bronze, Gray, Green |
White, Gray, Corten-effect, Custom |
| Post Cap Style | Flat square cap | Ornate cast cap | Flat / pyramid cap | Flat architectural cap |
| Mounting |
Base plate or direct burial |
Base plate on concrete / wall |
Base plate on curb / wall |
Base plate or wall fascia |
| Gate Hardware | N/A |
SS ball-bearing hinges magnetic latch, cane bolt |
N/A | N/A |
| Motor Compatibility | N/A |
LiftMaster LA500 BFT VIRGO (double) |
N/A | N/A |
| Wind Load Rating |
110 mph standard 150 mph (NOA opt.) |
110 mph standard |
110 mph standard (louvered reduces load) |
110 mph standard |
| Pool Code |
BOCA/NSPI compliant (48" H, self-latch) |
BOCA/NSPI compliant (self-close/latch) |
BOCA/NSPI compliant (48"+ config) |
No (decorative) |
| Warranty — Structure | Lifetime limited | Lifetime limited | Lifetime limited | Lifetime limited |
| Warranty — Finish |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
20 yr film / 10 yr color (AAMA 2604) |
| Standards |
ASTM F1184, B221 AAMA 2604 BOCA / IRC 2024 |
ASTM F1184, B221 AAMA 2604 BOCA / IRC 2024 |
ASTM F1184, B221 AAMA 2604 IRC 2024 |
ASTM F1184, B221 AAMA 2604 IRC 2024 |
| Lead Time (Stock) | 5–7 business days | 5–7 business days | 7–10 business days | 15–20 business days |
| Lead Time (Custom) | 10–15 working days | 10–15 working days | 15–20 working days | 20–25 working days |
