The Premium Chain Link Fence System from The Fence Depot is a complete, contractor-grade chain link enclosure solution for residential, commercial, industrial, and public-sector projects across Southern California. The system includes galvanized fence panels (straight runs), black powder-coated double swing driveway gates, and galvanized walk gates — all built from ASTM-spec hot-dip galvanized steel framework and Class 2 zinc-coated chain link fabric.
Framework is manufactured from Schedule 40 / heavy-gauge galvanized steel pipe per ASTM F1083 and ASTM F1043, with hot-dip galvanizing per ASTM A123 (1.8 oz/ft² minimum zinc coating). Chain link fabric is woven from Class 2 galvanized steel wire per ASTM A392, providing 2.0 oz/ft² zinc coating for superior corrosion resistance in coastal and high-humidity environments. Black polyester powder coating (AAMA 2604) is available over galvanized substrate for residential and HOA applications.
Every system includes complete hardware kits: tension bands, brace bands, rail ends, tension bars, tie wires, truss rods, post caps, and gate hardware (hinges, latches, cane bolts). Posts are spaced 10 ft O.C. standard, with 2-3/8" O.D. end/corner posts and 1-5/8" O.D. line posts. Pool-code configurations meet BOCA/NSPI requirements (48" minimum height, self-closing self-latching walk gates). All components meet or exceed Federal Specification RR-F-191K and CLFMI standards.

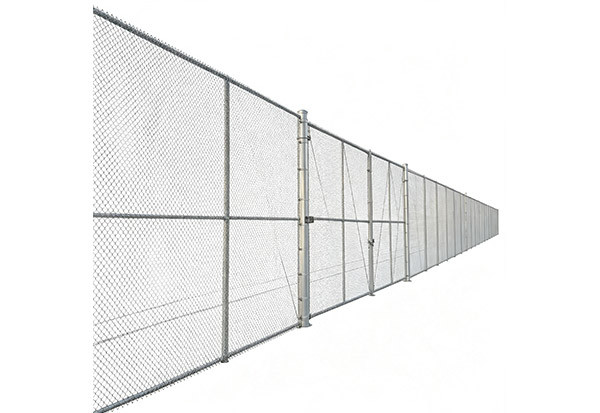

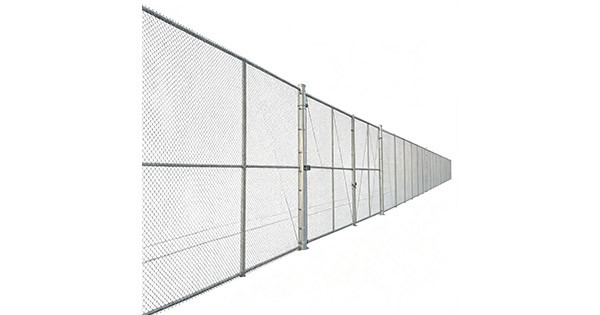

Standard galvanized chain link fence panel for straight runs. Features 2-3/8" O.D. end/corner posts (12 GA), 1-5/8" O.D. line posts (16 GA), 1-5/8" top rail, and 2" diamond Class 2 galvanized fabric (11 GA wire). Includes truss rod diagonal bracing, tension bands, brace bands, rail ends, tension bars, tie wires, and dome caps. Posts spaced 10 ft O.C. Available in heights 36"–144". The workhorse for commercial yards, industrial sites, sports fields, and property line enclosures.

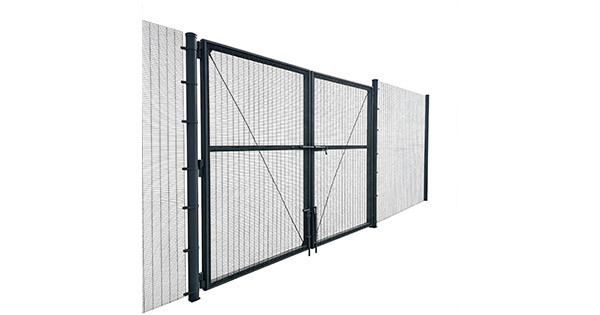

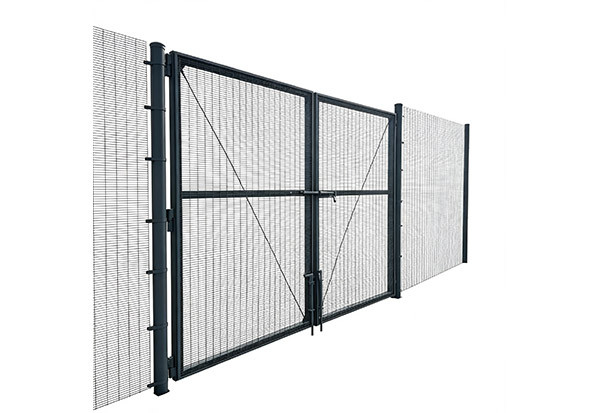

Black powder-coated double swing driveway gate for residential and light commercial driveways. 2-7/8" O.D. gate posts (12 GA), 2" O.D. gate frame with welded corners and diagonal cross-brace, 2" diamond black PVC-coated fabric over galvanized core. Includes heavy-duty male/female hinges, center cane drop bolts, fork latch, and all black-coated hardware. Standard widths 10–20 ft (5–10 ft per leaf), heights 48"–72". Compatible with LiftMaster LA500 and BFT VIRGO swing operators. AAMA 2604 powder coat over galvanized substrate.

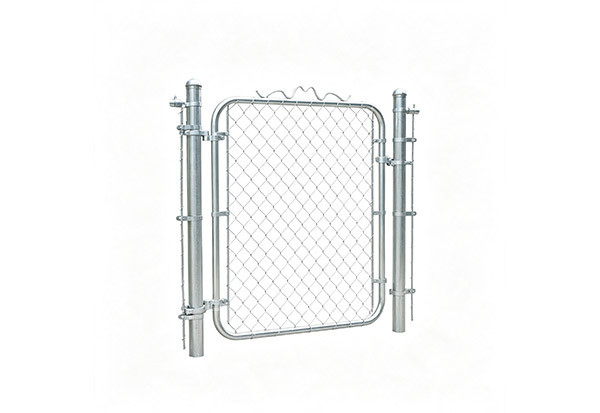

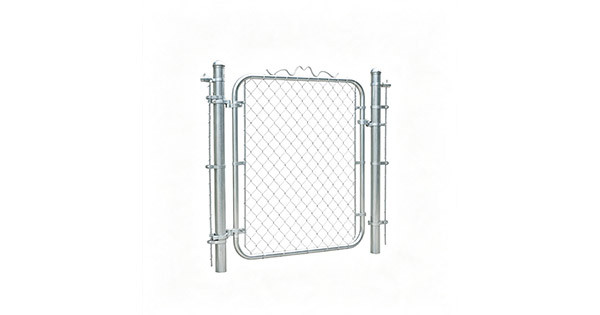

Galvanized chain link walk gate with rounded-top frame for pedestrian access, pool entries, and side yards. 1-5/8" O.D. frame (16 GA) with welded rounded corners, 2" diamond Class 2 galvanized fabric (11.5 GA), 1-7/8" O.D. hinge posts. Includes 180° pressed-steel hinges, fork latch, and all installation hardware. Pool-code models (48"/60") include self-closing spring hinge and self-latching magnetic latch. Standard widths 36"–48", heights 36"–72". Also available in black, green, or brown powder coat.
| Parameter |
TFD-CL01 Galvanized Fence Panel |
TFD-CL02 Black Double Gate |
TFD-CL03 Galvanized Walk Gate |
| Product Type |
Chain Link Fence Panel (Straight Run) |
Chain Link Double Swing Driveway Gate |
Chain Link Walk Gate (Rounded Top) |
| Framework Standard |
ASTM F1083 / F1043 Schedule 40 & 16 GA |
ASTM F1083 / F1043 12 GA framework |
ASTM F1083 / F1043 16 GA framework |
| Fabric Standard |
ASTM A392 / A817 Class 2 galvanized |
ASTM A392 / A817 Black coated over galv. |
ASTM A392 / A817 Class 2 galvanized |
| End / Corner Post |
2-3/8" O.D. (2" nom.) 12 GA (0.109") |
2-7/8" O.D. (2-1/2" nom.) 12 GA (0.109") |
1-7/8" O.D. (1-1/2" nom.) 16 GA (0.065") |
| Line Post |
1-5/8" O.D. (1-1/4" nom.) 16 GA (0.065") |
N/A (gate posts only) | N/A (gate posts only) |
| Gate Frame | N/A |
2" O.D. round pipe 14 GA (0.083") |
1-5/8" O.D. round pipe 16 GA (0.065") |
| Top Rail |
1-5/8" O.D. (1-1/4" nom.) 16 GA (0.065") |
Integral gate frame | Integral gate frame |
| Bottom Rail |
1-5/8" O.D. (optional, 8 ft+ panels) |
Integral gate frame | Integral gate frame |
| Mesh Diamond Size |
2" (50 mm) standard 1-3/4" / 2-1/4" / 1" opt. |
2" (50 mm) | 2" (50 mm) |
| Mesh Wire Gauge |
11 GA (0.120") standard 9 GA (0.148") industrial 11.5 GA (0.113") residential |
11 GA core (0.120") black PVC coated (total ~0.148") |
11.5 GA (0.113") standard 11 GA (0.120") optional |
| Zinc Coating |
Class 2: 2.0 oz/ft² (610 g/m²) per A392 |
Class 2 under coat + black polyester |
Class 2: 2.0 oz/ft² (610 g/m²) per A392 |
| Framework Galvanizing | 1.8 oz/ft² per ASTM A123 | 1.8 oz/ft² + powder coat | 1.8 oz/ft² per ASTM A123 |
| Color / Finish | Mill galvanized (silver) |
Black polyester powder over galvanized (duplex) |
Mill galvanized (silver) black/green/brown opt. |
| Powder Coat Standard | N/A | AAMA 2604, 2.5–3.5 mils | AAMA 2604 (color option) |
| Standard Heights |
48" / 60" / 72" / 84" 96" / 120" / 144" |
48" / 60" / 72" | 36" / 42" / 48" / 60" / 72" |
| Standard Widths |
Per linear foot (10 ft post spacing) |
10 / 12 / 14 / 16 / 18 / 20 ft (5–10 ft per leaf) |
36" / 42" / 48" wide |
| Post Spacing | 10 ft O.C. standard | N/A | N/A |
| Truss Bracing |
1/4" O.D. truss rod with turnbuckle |
Diagonal frame brace (welded) |
Diagonal frame brace (welded) |
| Gate Hardware | N/A |
Male/female hinges, cane bolts, fork latch |
Hinges, fork latch; spring closer (pool code) |
| Motor Compatibility | N/A |
LiftMaster LA500 BFT VIRGO |
N/A |
| Post Caps | Dome caps (galvanized) | Flat caps (black coated) | Dome caps (galvanized) |
| Barbed Wire Option |
3-strand barb arms or concertina arms |
N/A | N/A |
| Wind Load Rating |
110 mph standard 150 mph (NOA opt.) |
110 mph standard | 110 mph standard |
| Pool Code |
BOCA/NSPI compliant (48"+ config) |
N/A (driveway gate) |
BOCA/NSPI compliant (self-close/latch 48"+) |
| Warranty — Structure |
10 years (framework) 5 years (fabric) |
10 years (framework) 5 years (fabric) |
10 years (framework) 5 years (fabric) |
| Warranty — Coating | N/A (galvanized) |
10 years powder coat (AAMA 2604) |
10 years (color option) |
| Standards |
ASTM F1043, F1083, F668 A392, A817, A123 RR-F-191K / CLFMI |
ASTM F1043, F1083 A392, A817, A123 AAMA 2604 / CLFMI |
ASTM F1043, F1083 A392, A817, A123 RR-F-191K / BOCA / CLFMI |
| Lead Time (Stock) | 5–7 business days | 7–10 business days | 5–7 business days |
| Lead Time (Custom) | 10–15 working days | 15–20 working days | 10–15 working days |
