The Vinyl (PVC) Fence Series from The Fence Depot offers five classic American fence styles in maintenance-free rigid vinyl: an arched picket walk gate, straight-top picket panels, privacy panels with lattice top, scalloped picket panels, and full-lattice garden screens. Vinyl is the fastest-growing fence category in Southern California — homeowners get the white picket look without painting, staining, or termite treatment, and HOA communities love the uniform appearance that never fades or chalks.
All profiles are extruded from 100% virgin rigid PVC compound per ASTM D1784 (cell class 12454-B), formulated with 10 parts per hundred resin (phr) titanium dioxide for UV resistance and acrylic impact modifiers — not calcium carbonate filler that makes cheap vinyl brittle. Wall thickness ranges from 0.135" (residential picket) to 0.150"+ (privacy/commercial). Posts are 4"×4" or 5"×5" routed square with aluminum or steel internal reinforcement inserts available for high-wind zones. All components meet ASTM F964, the standard specification for rigid poly(vinyl chloride) (PVC) exterior profile fencing.
Panels assemble with routed posts and interlocking rails — no visible fasteners on picket styles. Privacy panels use tongue-and-groove boards that expand and contract with temperature without gapping. Standard heights 36"–96"; panel widths 72" (6 ft) and 96" (8 ft). Colors: White, Tan, Khaki, Adobe Red, and Weathered Wood. Lifetime limited warranty (transferable) on all residential vinyl products.

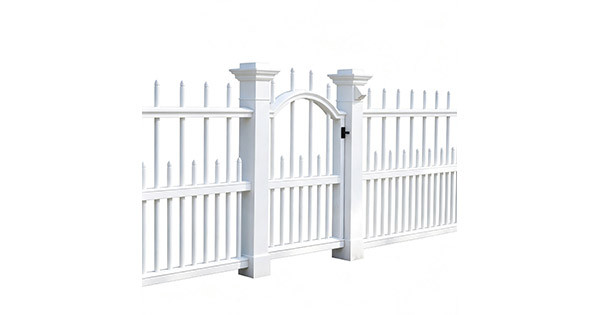

Classic American arched picket walk gate in white vinyl. 7/8"×3" pointed pickets (0.135" wall), 2"×3.5" top and bottom rails, 4"×4" posts with decorative New England caps. Arched top rail heat-formed for a smooth curve. Internal steel C-channel reinforcement prevents sag. Stainless steel black hinges and thumb latch included. Standard width 42" (36"–48" available); height 42" at posts, 48" at arch peak. Matches TFD-VP02 and TFD-VP04 picket panels. Pool-code latch option available.

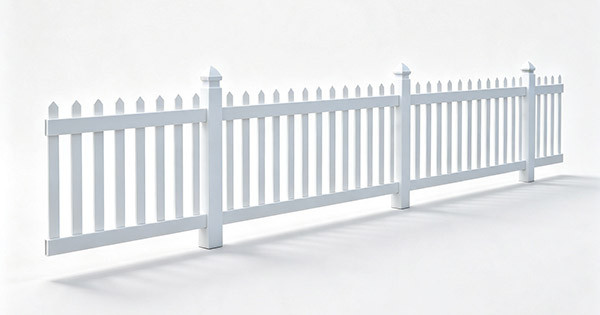

Straight-top picket fence panel — the iconic white picket fence. 7/8"×3" pointed pickets (0.135" wall) at 3" O.C., two 2"×3.5" rails (0.135" wall), 4"×4" routed posts with pyramid caps. Standard heights 36", 42", 48"; panel width 96" (8 ft) or 72" (6 ft). Rails lock into routed posts — no visible fasteners. Ideal for front yards, cottage gardens, and HOA communities. Available in White, Tan, and Khaki. Matching walk and drive gates available.

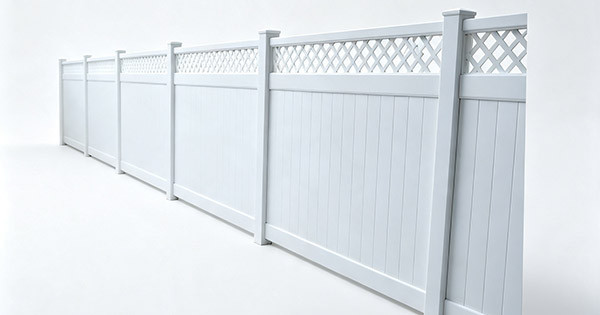

Full-privacy fence panel with decorative diamond lattice top band. 3/4"×5.5" T&G privacy boards (0.150" wall) on bottom 48"–60"; 12" lattice top (1/2"×1-1/2" slats, 1" diamonds); 2"×6" top and bottom U-channel rails; 5"×5" posts (0.150" wall) with flat caps. Standard heights 60", 72", 84"; panel width 96" (8 ft). The lattice top adds airflow and visual interest while maintaining full privacy below. Most popular backyard style in Southern California HOAs.
Scalloped (arched) picket fence panel with pickets graduated in length to create a gentle arch curve. 7/8"×3" pointed pickets (0.135" wall), two 2"×3.5" rails, 4"×4" posts with decorative caps. Standard height 42" at posts rising to 52" at center; panel width 96" (8 ft). The scalloped profile adds curb appeal and a softer look than straight picket — popular for cottage, Cape Cod, and farmhouse styles. Pairs with TFD-VP01 arched gate for a coordinated front entry.

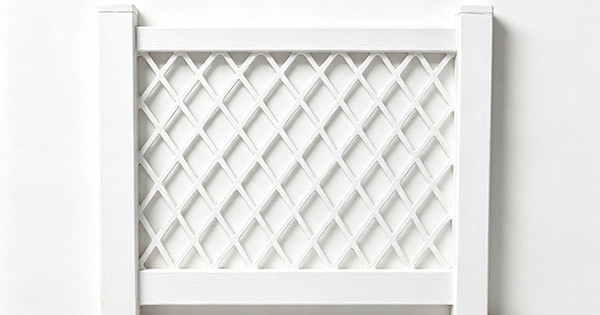

Full-height diamond lattice panel for garden screens, AC unit enclosures, patio dividers, and climbing plant supports. 1/2"×1-1/2" vinyl slats (0.120" wall) in 1" diamond openings, framed in 1-1/2"×1-1/2" vinyl border; 4"×4" posts with flat or pyramid caps. Standard heights 36", 48"; panel width 96" (8 ft). Open lattice provides 60% airflow while screening unsightly views. Vinyl lattice will not rot, splinter, or need staining like wood lattice — ideal for jasmine, bougainvillea, and climbing roses.
| Parameter |
TFD-VP01 Arched Gate |
TFD-VP02 Straight Picket |
TFD-VP03 Privacy Lattice |
TFD-VP04 Scalloped Picket |
TFD-VL05 Full Lattice |
| Product Type |
Arched Picket Walk Gate |
Straight Picket Fence Panel |
Privacy Fence with Lattice Top |
Scalloped Picket Fence Panel |
Full Lattice Fence Panel |
| Material Standard |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
ASTM D1784 cell 12454-B |
| Virgin PVC Content |
100% virgin no regrind |
100% virgin no regrind |
100% virgin no regrind |
100% virgin no regrind |
100% virgin no regrind |
| TiO2 UV Stabilizer | 10 phr minimum | 10 phr minimum | 10 phr minimum | 10 phr minimum | 10 phr minimum |
| Impact Modifier | Acrylic (not CPE) | Acrylic (not CPE) | Acrylic (not CPE) | Acrylic (not CPE) | Acrylic (not CPE) |
| Post Size |
4"×4" sq. routed (5" opt.) |
4"×4" sq. routed | 5"×5" sq. routed | 4"×4" sq. routed | 4"×4" sq. routed |
| Post Wall Thickness | 0.150" | 0.150" | 0.150"–0.180" | 0.150" | 0.150" |
| Rail Size |
2"×3.5" rect. 2 rails |
2"×3.5" rect. 2 rails |
2"×6" U-channel 2 rails |
2"×3.5" rect. 2 rails |
1-1/2"×1-1/2" lattice frame |
| Rail Wall Thickness | 0.135" | 0.135" | 0.150" | 0.135" | 0.120" |
| Picket / Board |
7/8"×3" pointed pickets |
7/8"×3" pointed pickets |
3/4"×5.5" T&G privacy boards |
7/8"×3" pointed pickets (graduated) |
1/2"×1-1/2" lattice slats |
| Picket Wall Thickness | 0.135" | 0.135" | 0.150" | 0.135" | 0.120" |
| Picket Spacing | 3" O.C. | 3" O.C. |
T&G full close (no gaps) |
3" O.C. |
1" diamond openings |
| Lattice Detail | N/A | N/A |
12" top band 1" diamonds |
N/A |
Full height 1" diamonds |
| Standard Heights |
42" at posts 48" at arch peak |
36" / 42" / 48" | 60" / 72" / 84" |
42" at posts 52" at center |
36" / 48" |
| Panel / Gate Width |
36"–48" gate (42" standard) |
72" / 96" | 72" / 96" | 72" / 96" | 72" / 96" |
| Assembly |
Routed posts locking rails |
Routed posts locking rails |
Routed posts T&G boards |
Routed posts locking rails |
Routed posts framed lattice |
| Gate Reinforcement |
Internal steel C-channel |
N/A | N/A (gate opt.) | N/A (gate opt.) | N/A |
| Post Cap Style | New England cap | Pyramid cap | Flat cap | Decorative cap | Flat / pyramid cap |
| Internal Insert |
Steel C-channel (gate) |
Aluminum insert (opt. high wind) |
Aluminum/steel insert (opt.) |
Aluminum insert (opt.) |
N/A |
| Standard Colors | White, Tan, Khaki | White, Tan, Khaki |
White, Tan, Khaki Adobe Red, Wthrd Wood |
White, Tan, Khaki | White, Tan, Khaki |
| Hardware Included |
SS hinges + latch (black or white) |
SS screws (color-matched) |
SS screws (color-matched) |
SS screws (color-matched) |
SS screws (color-matched) |
| Wind Load Rating | N/A (gate) |
110 mph standard 150 mph NOA opt. |
110 mph standard 150 mph NOA opt. |
110 mph standard | 110 mph standard |
| Pool Code |
Self-closing latch (opt.) |
BOCA/NSPI (48"+ config) |
BOCA/NSPI (48"+ config) |
BOCA/NSPI (48"+ config) |
Not rated (open lattice) |
| Temperature Range |
-20°F to 140°F service |
-20°F to 140°F service |
-20°F to 140°F service |
-20°F to 140°F service |
-20°F to 140°F service |
| Thermal Expansion |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
0.003 in/in per 50°F ΔT |
| Flammability |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
Self-extinguishing per ASTM D635 |
| Warranty |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
Lifetime limited (transferable) |
| Standards |
ASTM F964, D1784 D638, D256, G154 ICC-ES, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES, NOA, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES, BOCA |
ASTM F964, D1784 D638, D256, G154 ICC-ES |
| Lead Time (Stock) | 3–5 business days | 3–5 business days | 3–5 business days | 5–7 business days | 3–5 business days |
| Lead Time (Custom) | 10–15 working days | 7–10 working days | 7–10 working days | 10–15 working days | 7–10 working days |
